Problem 25 · 2012 Math Kangaroo
Stretch
Spatial & Visual Reasoning
path-tracing

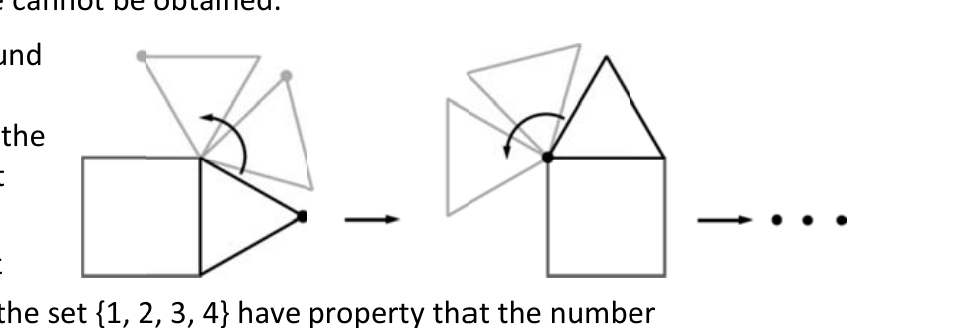

An equilateral triangle is being rolled around a unit square as shown. How long is the path that the point shown covers, if the point and the triangle are both back at the start for the first time?
Show answer
Answer: B — \(\tfrac{28}{3}\pi\)
Show hints
Hint 1 of 2
The triangle has the same side length (1) as the square, so each pivot turns it by the exterior angle \(120^\circ\), except at a square corner where an extra \(90^\circ\) is added.
Still stuck? Show hint 2 →
Hint 2 of 2
The marked point sweeps an arc of radius 1 each flip, unless the point itself is the pivot (then radius 0, no arc); add the arcs over one full return circuit.
Show solution
Approach: sum the arcs swept by the marked vertex over one full circuit
- Each tumble pivots the triangle about a vertex; the marked point (another vertex, distance 1 away) sweeps a circular arc of radius 1 — and stays put whenever it is itself the pivot.
- On a flat stretch each flip turns the triangle \(120^\circ = \tfrac{2\pi}{3}\); rounding a square corner adds an extra \(90^\circ\) to that turn.
- Following the rolling until both the point and the triangle first return to their starting position, the swept arcs (each of radius 1) total an angle of \(\tfrac{28}{3}\pi\).
- So the path length is \(\tfrac{28}{3}\pi\), choice B.
